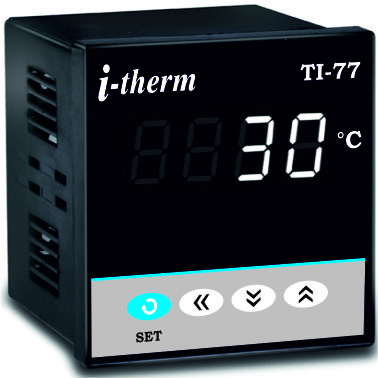

TI-77

72×72

 4 Digit – Single Row


Features
  • Selectable sensor input (T/C & RTD)
  • Input Signal Conditioning
  • Universal supply voltage ranges from 90 to 270 VAC
  • Program Lock function
  • Specifications
  • Related Products
  • Download
Description Ti-77
Display Height & Colour 0.56'' White
No. of Digits 4 Digits Single Row
Input Specification
Measurement

 Sensor Input T/C: J, K, R, S, N, T, B
RTD: Pt-100
Resolution T/C: 1°C & Pt-100: 1°C/ 0.1°C
Sampling Rate 250msec
Accuracy 0.3% FS
General Specification
Supply Voltage 90 - 270 VAC/ DC
(24 VDC Available on Request)
Temperature And Humidity Operating: 0-50°C
Storage: -20° to 75°C
95% RH (Non-condensing)
Dimensions in mm (H x W x D) 72 x 72 x 65
