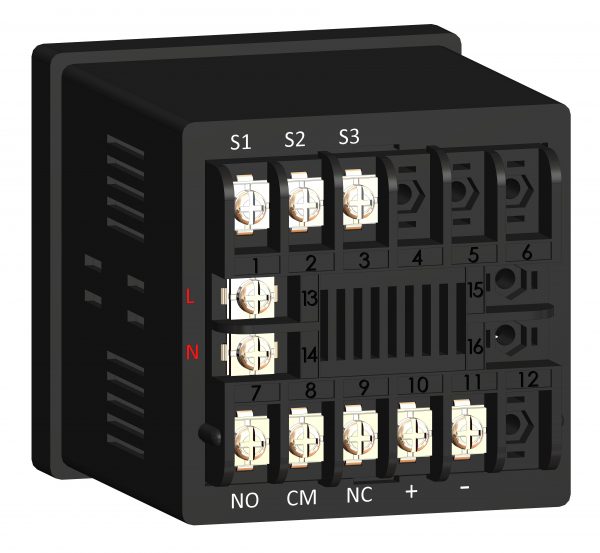

AI-7741

72×72

4 Digit – Single Row
One Output

Features
  • Selectable sensor input (T/C & RTD)
  • Programmable control action PID control/ ON-OFF
  • Programmable Input Signal Conditioning (Digital Filter & Zero Offset)
  • Programmable Lower and Higher Setpoint Limit
  • Program lock function (To prevent unauthorized tampering)
  • Selectable Control Output (Relay/ SSR Drive)
  • Overshoot Control Protection
  • Single Step Ramp
  • Time Delay for Compressor
  • Available in 4 different sizes (48×48, 48×96, 72×72, 96×96)
  • Universal supply voltage ranges from 90 to 270 VAC
  • 24VDC Available on Request
  • Specifications
  • Related Products
  • Download
DescriptionAI-7741
DisplayHeight & Colour0.56'' White
No. of Digits4 Digits Single Row
LED IndicationOutput Status
Input Specification
Measurement



 Sensor Input
 T/C: J, K, R, S, N, T, B
RTD: Pt-100
Resolution T/C: 1°C & Pt-100: 1°C/ 0.1°C
Sampling Rate 250msec
Accuracy 0.3% FS
Output Specification
Output Relay 5A @ 250 VAC/ 30VDC
SSR Drive 12 VDC @ 30mA
General Specification
Supply Voltage
90 - 270 VAC/ DC
(24 VDC Available on Request)
Temperature And Humidity Operating: 0-50°C
Storage: -20° to 75°C
95% RH (Non-condensing)
Dimensions in mm (H x W x D)72 x 72 x 65
