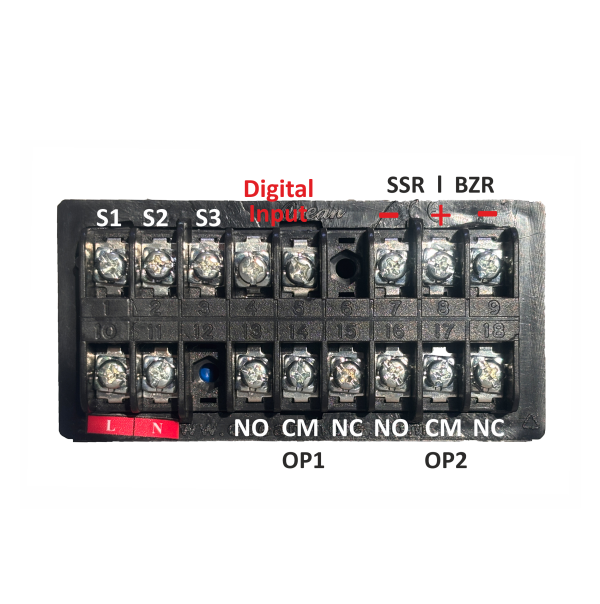

AI-7682
96×48
4 Digit – Dual Row
Two Output
Features
- Selectable sensor input (T/C & RTD)
- Programmable control action PID control/ ON-OFF
- Programmable Input Signal Conditioning (Digital Filter & Zero Offset)
- Programmable Lower and Higher Setpoint Limit
- Program lock function (To prevent unauthorized tampering)
- Selectable Control Output (Relay/ SSR Drive)
- Selectable Alarm/ Soak Timer Output (Except 48×48 size)
- Alarm Acknowledge & Inhibit function
- Programmable soak timer with 4 Start modes
- Battery Backup for Soak Timer
- Timer Hold Strategy
- Settable soak time delay
- Overshoot Control Protection
- Single Step Ramp Soak
- Time Delay for Compressor
- Available in 5 different sizes (48×48, 48×96, 72×72, 96×48, 96×96)
- Universal supply voltage ranges from 90 to 270 VAC
- Supply 24VDC Available on Request
- Specifications
- Related Products
- Download
| Description | AI-7682 | |
| Display | Height & Colour | 0.36'' White & 0.36'' Pure Green |
| No. of Digits | 4 Digits Dual Row | |
| LED Indication | Output Status & Soak Time | |
| Input Specification | ||
| Measurement | Sensor Input | T/C : J, K, R, S, N, T, B RTD : Pt-100 |
| Resolution | T/C : 1°C & Pt-100 : 1°C / 0.1°C | |
| Sampling Rate | 250msec | |
| Accuracy | 0.3% FS | |
| Output Specification | ||
| Output | Relay | 5A @ 250 VAC/ 30VDC |
| SSR Drive | 12 VDC @ 30mA | |
| Functional Specification | ||
| Output 2 Function | Alarm | Low/ High/ Band Low Deviation/ High Deviation |
| Soak Timer | Heater off/ Alarm/ Both | |
| General Specification | ||
| Supply Voltage | 90 - 270 VAC/ DC (24 VDC Available on Request) |
|
| Temperature And Humidity | Operating: 0-50°C Storage: -20° to 75°C 95% RH (Non-condensing) |
|
| Dimensions in mm (H x W x D) | 96 x 48 x 53 | |
